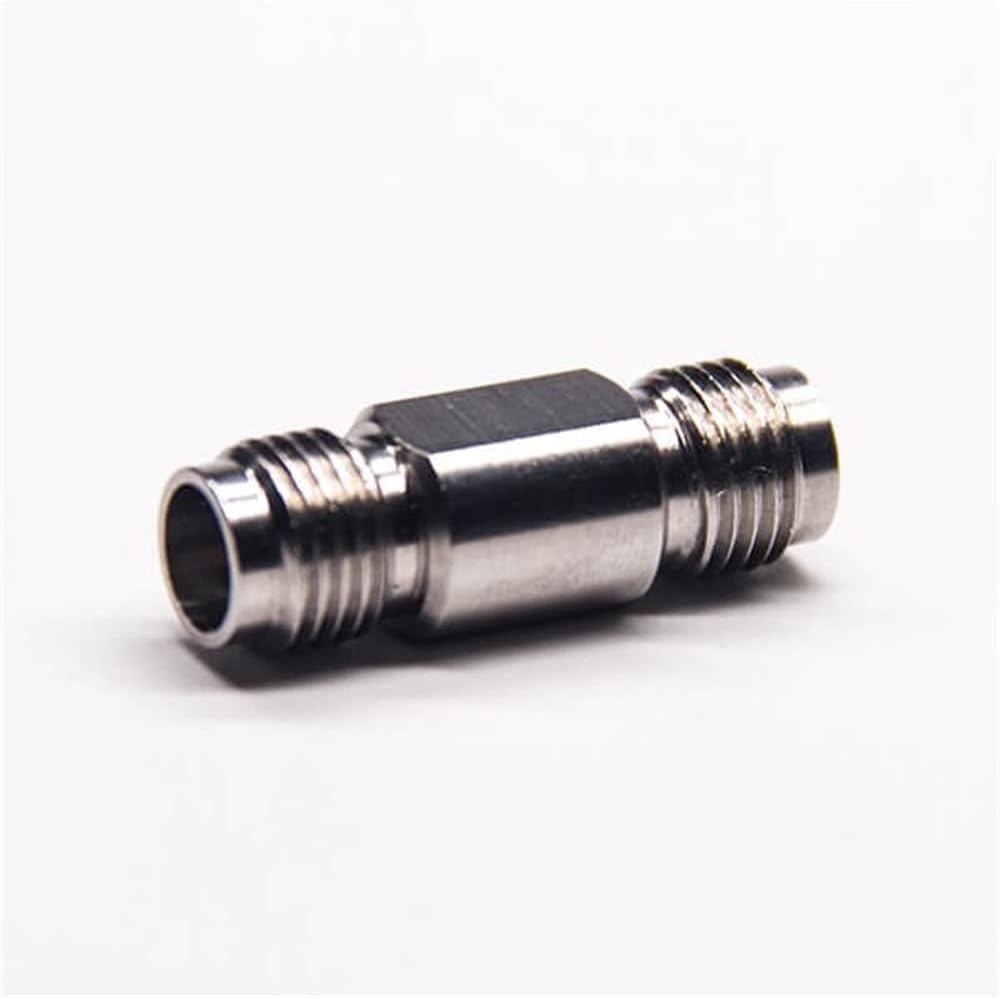

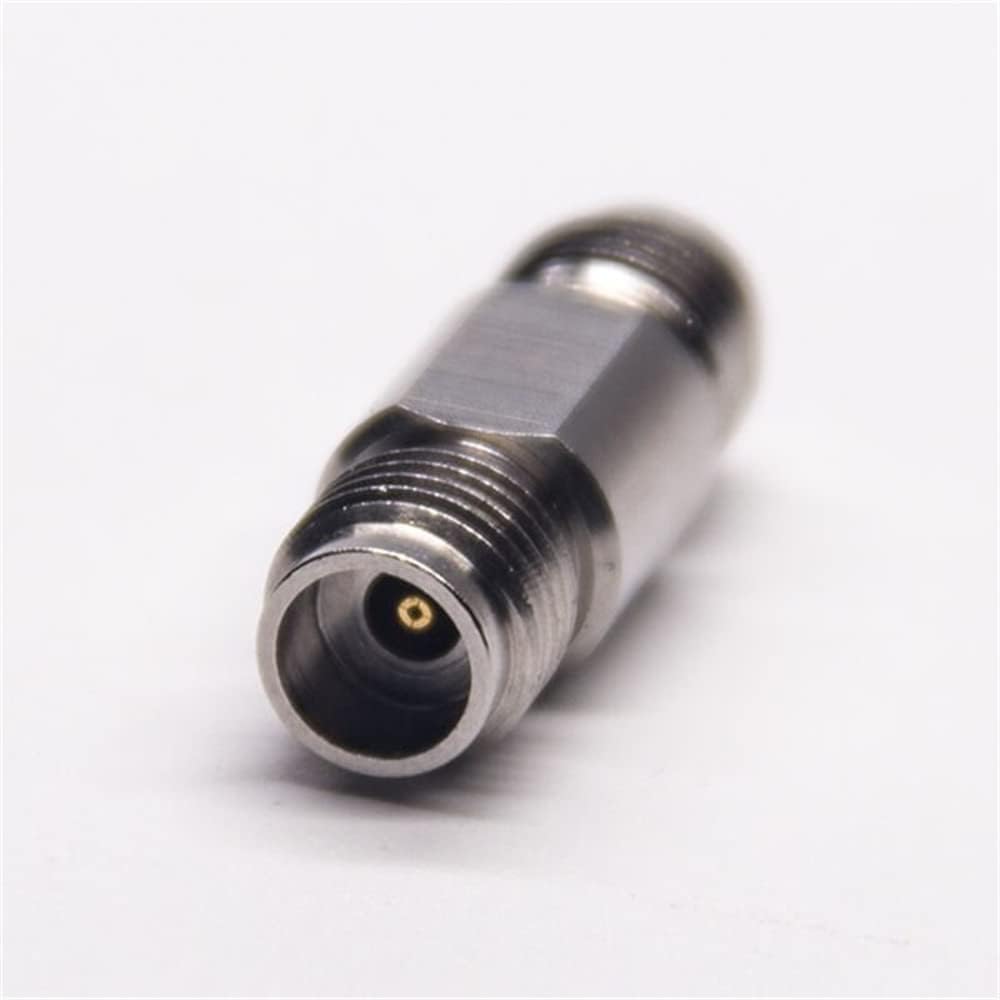

Elecbee Adapter 2.4mm Female to 2.4mm Female High Frequency Adapter
Product details
| Management number | 218631335 | Release Date | 2026/05/03 | List Price | $25.33 | Model Number | 218631335 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Appliance: High Speed Digital Instrumentation Military Aerospace Satellite Communication Equipment (SATCOM) Cable Assemblies Test and measurement Electrical Characteristics Impedance: 50 Ohm Frequency range: DC~50 GHz Voltage rating: 150 V(rms) Center contact resistance: <4.0mΩ Outer contact resistance: <2.5mΩ Insertion loss: <.05 sqrt(f(GHz)) dB VSWR: <1.25 Mechanical Characteristics Center contact retention force: >20 N Coupling test torque: 1.65 Nm Recommended torque: 0.8 Nm to 1.10 Nm Durability: >500 cycles Environmental Characteristics Temperature Range：-40°C to +85°C
- High frequency connector,Microwave connector, Adapter,2.4mm,female,2.4mm ,female,straight,standard,50 Ohm,stainless steel
- Frequency range DC to 50 GHz
- Low VSWR
- Low Insertion Loss
- Low RF LeakageSuperior reliability
| Brand | Elecbee |
|---|---|
| Manufacturer | Elecbee |
| Package Quantity | 1 |
